Gamma Radiation Hardened

Our Product Range

Certified gamma-hardened LED luminaires engineered for the most demanding radiation environments. All products incorporate our proprietary in-house designed LED driver, encapsulated in neutron-absorbing stainless steel.

Standard Gamma Products

Gamma-Hardened Luminaires

Linear Gamma LED luminaire
Fluorescent Replacement
Linear / Gamma

The most efficient substitute for fluorescent lamps in radiation environments. Power consumption 2–3x lower than standard fluorescent. Available in three standard lengths or fully custom dimensions, with beam angles from 15° to 120° and asymmetric options.

Overall Efficiency~160 lm/W
Power Range10–60 W
Gamma Rating150 kGy
IP RatingIP65
Stainless Steel Gamma LED luminaire
High Bay Reflector
Stainless Steel / Gamma

Compact gamma-hardened LED reflector made entirely from stainless steel. Designed for containment building montage where conditions are most extreme. Proprietary LED driver encapsulated in a stainless steel box with neutron-absorbing shielding material.

LED Efficiency210–220 lm/W
Overall Efficiency>160 lm/W
Gamma Rating150 kGy
HousingFull Stainless Steel
Flat Line Gamma LED luminaire
Indoor Flat Panel
Flat Line / Gamma

Low-profile luminaire for indoor technical and production areas exposed to gamma radiation. 100% resistance to single LED source failure with redundant power modules. Aluminium housing with high-quality polyurethane finish. Recommended mounting height 3–12m.

Beam Angles60° / 120°
Mounting Height3–12m
LED Redundancy100% single-source failure resistant
Gamma Rating150 kGy

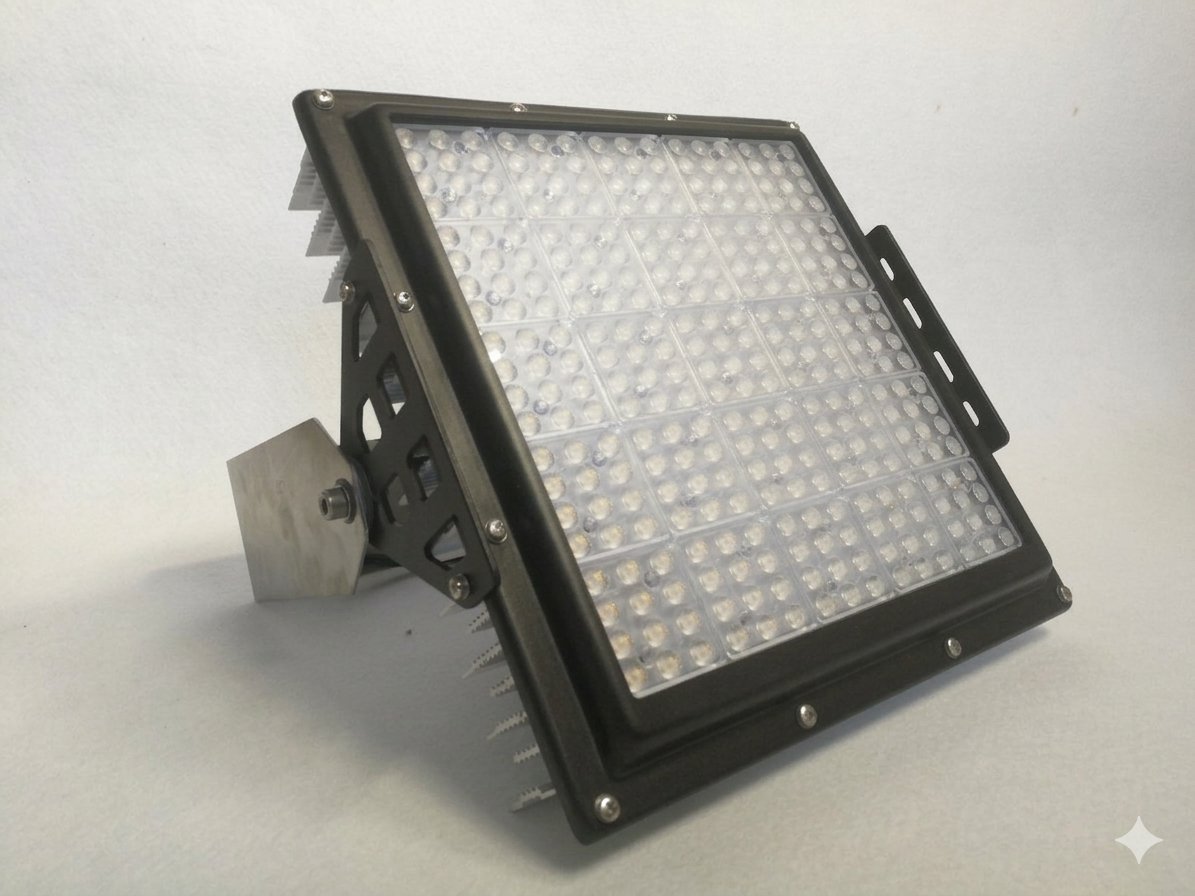

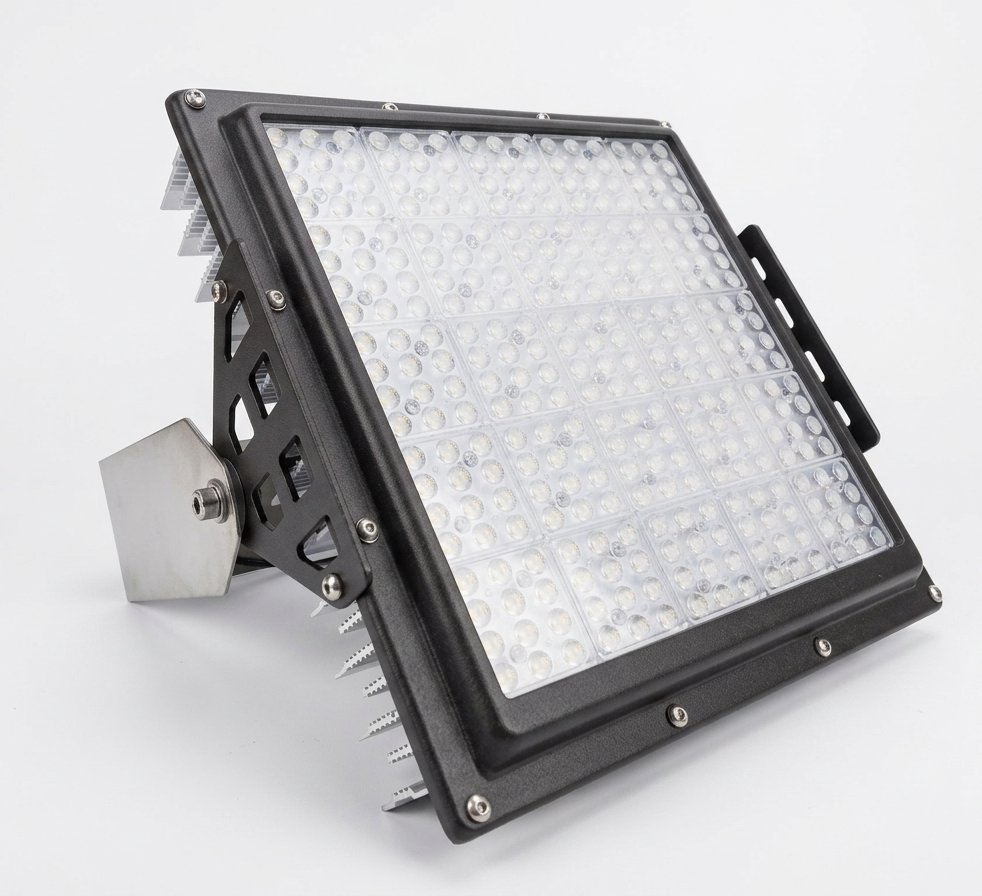

Stadium Gamma LED reflector
High-Bay Reflector
Stadium / Gamma

Compact gamma-hardened reflector for ceiling and wall mounting in high-bay nuclear environments. Available in SR3030 (standard) and SR3060 (large area) configurations.

ModelsSR3030 · SR3060
LED Efficiency210 lm/W
Overall Efficiency160 lm/W
Gamma Rating150 kGy

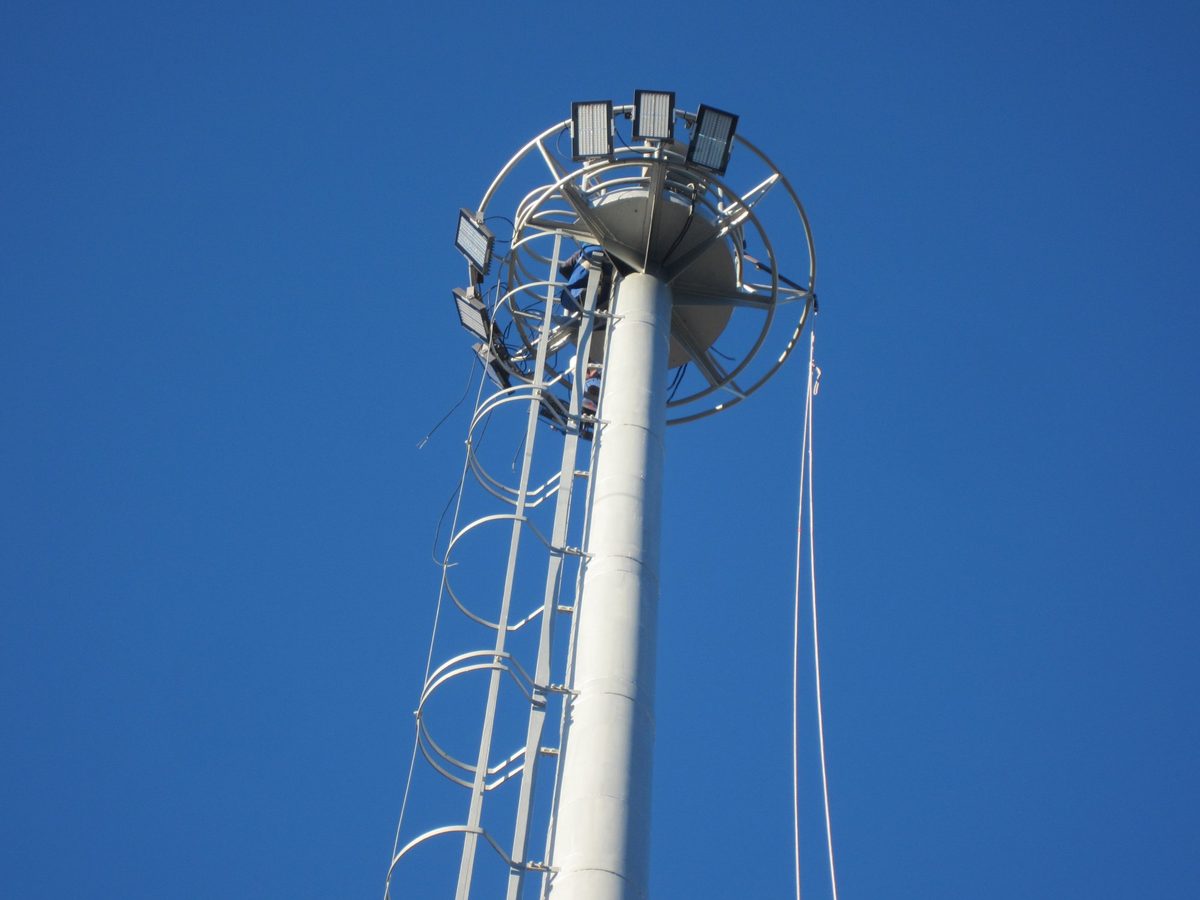

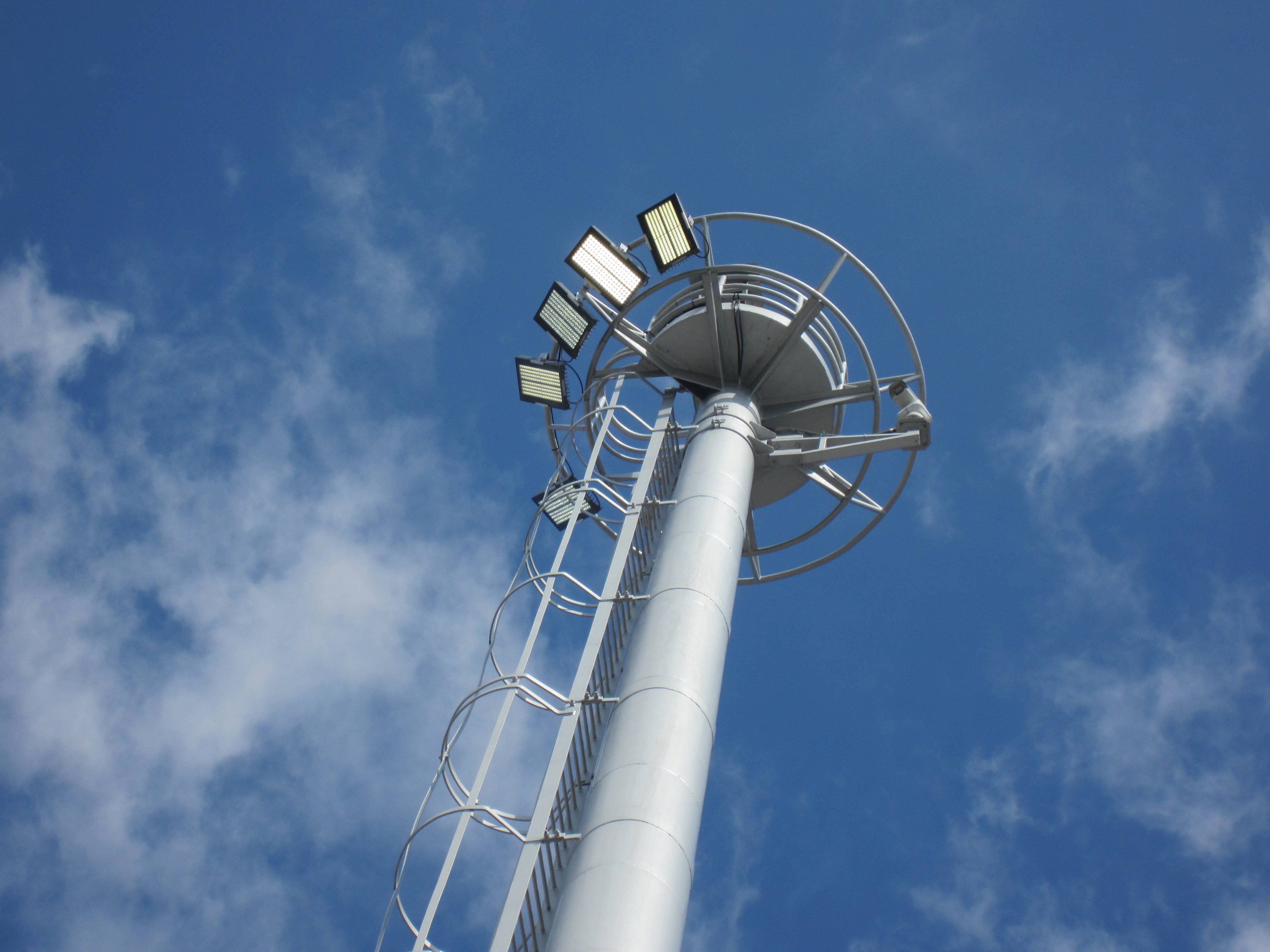

STR Gamma outdoor reflectors on towers at NEK Krško
Outdoor Area Reflector
STR / Gamma

High-efficiency outdoor reflector for large radiation areas — waste management buildings and outdoor nuclear facilities. Nanotechnology optics with 98% reflectivity. Reference installation: 40 units on 6 towers at 30m height, illuminating the switchyard area at NEK Krško.

Mounting Height8–30m
Optics98% reflectivity (nanotechnology)
Designed Lifetime>20 years
Gamma Rating150 kGy
Emergency Backup System

Emergency LED Lighting Solution

The only radiation-resistant emergency lighting solution where the luminaire itself requires no modification. Any Luminos Nuclear luminaire can operate as both standard and emergency lighting. In the event of mains failure, the system automatically switches to battery backup — no rewiring, no separate emergency fittings.

The control cabinet and LiFePO4 battery bank are mounted outside the radiation zone. Up to 150 hours of backup operation with four 60W luminaires. Installed at reference facilities in the UK and Belgium alongside LINEAR/GAMMA luminaires.

Learn More → Request Quote Download Datasheet

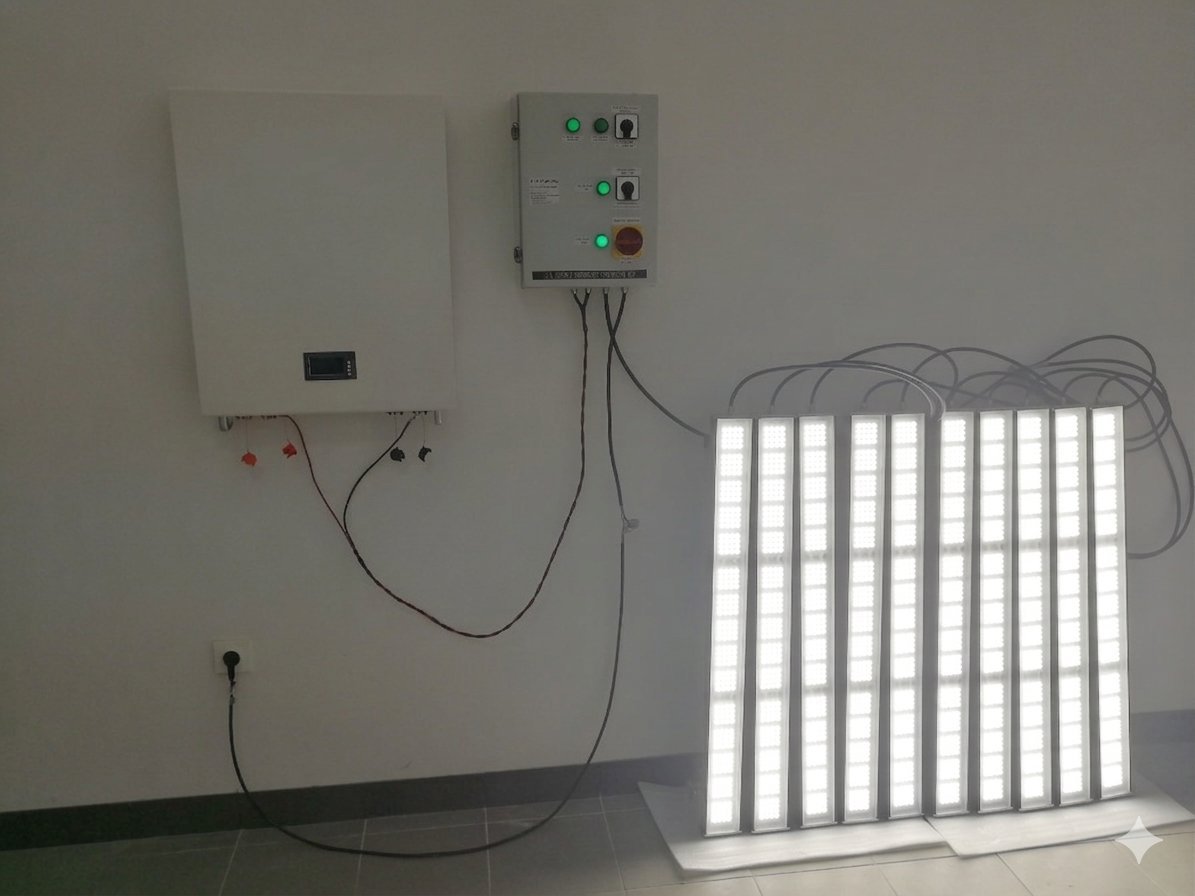

Complete emergency LED system installation
150h
Backup duration
48V DC
or 230V AC input
LiFePO4
Battery technology
Auto
Switchover on mains failure
Custom Engineering

Non-Standard Requirements?

Not every radiation environment fits a standard luminaire catalogue. We design and manufacture custom solutions for applications where off-the-shelf products are insufficient — including specialised form factors, specific mounting requirements, higher radiation tolerances, or integrated emergency capability.

We have built luminaires for cyclotron bunkers, nuclear waste management buildings, radiotherapy rooms, and hot cell environments across Europe — often starting from a specific problem rather than a product catalogue.

Custom dimensions & form factors
Custom mounting systems
Hot cell applications (100+ kGy)
Custom input voltage — 120V AC (U.S. market) or DC variants
Elevated temperature design
Special covers & fire-resistant specifications
Integrated emergency capability
Discuss Your Requirements →
Our Approach

Engineering from First Principles

Because we design and manufacture everything in-house — LED panels, driver electronics, mechanical housing — we can adapt any part of the product to meet your environment's specific requirements. We've built luminaires for cyclotron bunkers, nuclear waste management buildings, and radiotherapy rooms across Europe, often starting from a conversation about a problem rather than a product catalogue.

Standard hot cell gamma requirement
100 kGy — exceeded as standard

Not Sure Which Product Is Right for You?

Describe your radiation environment and our engineers will recommend the best solution.
